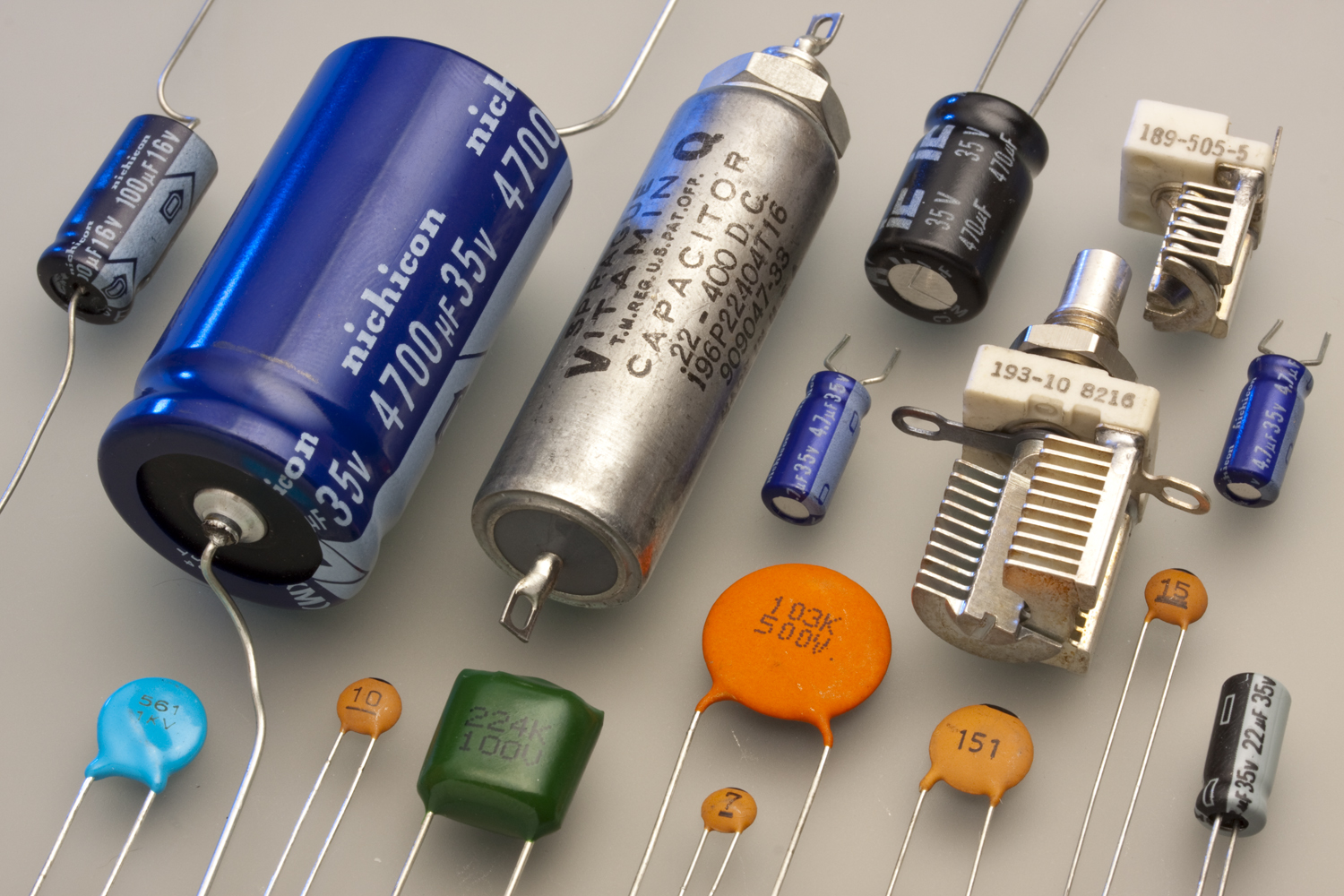

Types of Capacitors

Polar Capacitor

Polar capacitors, or polarized capacitors, are a type of capacitor whose terminals (electrodes) have polarity: positive and negative. The positive terminal should be connected to the positive side of the supply and the negative terminal to the negative side. Reversing the polarity will destroy the capacitor. These types of capacitors are only used in DC applications.

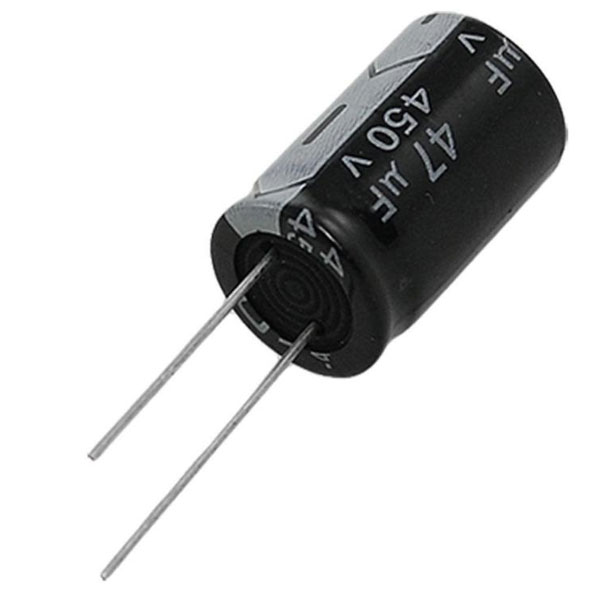

Electrolytic capacitor

An electrolytic capacitor is a type of polar capacitor that uses an electrolyte as one of its electrodes to maintain heavy charge storage. It is made up of two metal plates whose positive (anode) plate is covered with an insulating oxide layer through anodization. This insulating layer acts as the dielectric. The electrolyte is used as the second terminal cathode. The electrolytes can be solid, liquid or gas type material.

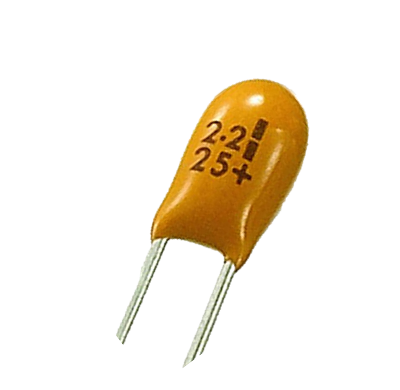

Tantalum Capacitor

Tantalum capacitor uses solid electrolytes such as manganese dioxide (MnO2) or polymer.

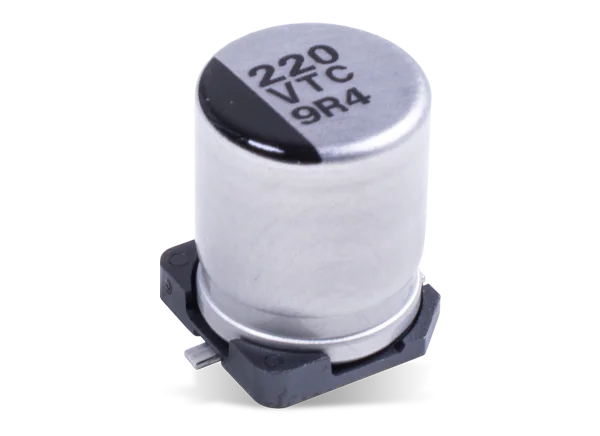

Surface-mount Capacitor

SMD/SMT surface-mount capacitors are the most widely used type of capacitor today — they are small, leadless, and easy to place on a PCB, making them ideal for high-volume manufacture. Their performance is also very good, and some perform particularly well at RF.

Ceramic (disc cap) capacitor

As the name suggests the ceramic capacitor is a type of non-polar capacitor in which the dielectric used is a ceramic material. It is made of two layers of metal (usually nickel and copper) with ceramic (paraelectric or ferroelectric) as the dielectric. These alternating layers are stacked together to provide high capacitance value. The minimum thickness of the ceramic dielectric layer is about 0.5 μm. The voltage rating of the capacitor depends on its dielectric strength. Furthermore, the terminals are attached to electrodes, and the capacitor is covered in a ceramic protective layer against moisture.

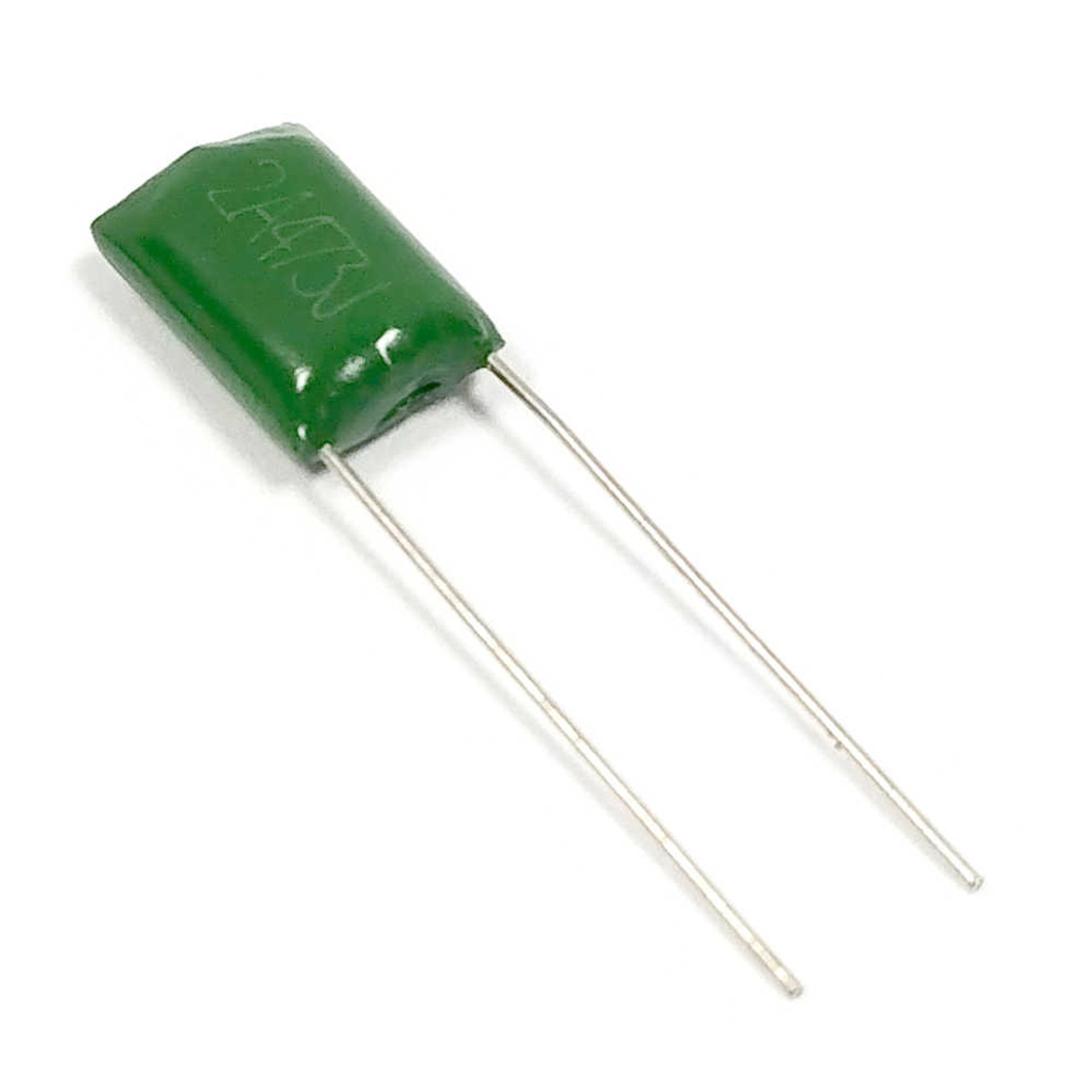

Polyester capacitor

Polyester capacitors are capacitors composed of metal plates with polyester film between them, or a metallized film is deposited on the insulator. They have a high temperature coefficient. They have high isolation resistance, so they are good choice capacitors for coupling and/or storage applications.

Variable Capacitor

a capacitor where the user can the change the value of the capacitance of the capacitor mechanically. They don’t have fixed capacitance value instead they provide a range of values. They are used in tuning LC circuits for a radio receiver, impedance matching in antennas.

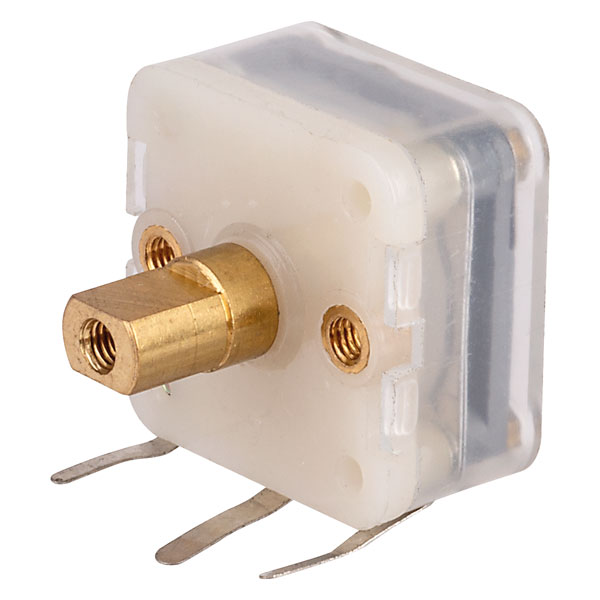

Tuning Capacitor

This type of variable capacitor is used for tuning & is commonly used in LC circuits for radio tuning. Its capacitance can be varied by rotating a knob which rotates the rotor across the stator with a dielectric between them. The dielectric used is either air or mica.

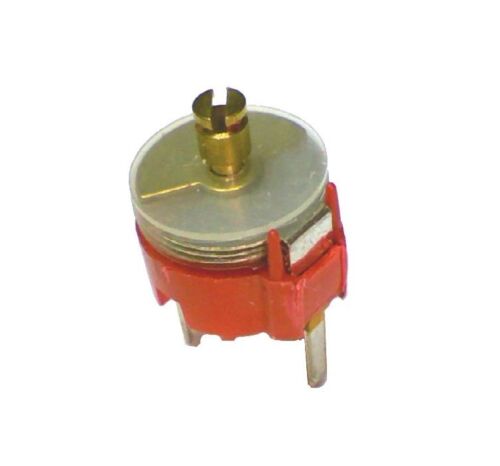

Trimmer capacitor

This type of variable capacitor’s capacitance is varied by using a screwdriver. They are not very tolerant to continuous changing in capacitance. They can only withstand a few adjustments. It has the same construction design as a tuning capacitor. The dielectric used in the trimmer capacitor is either air or ceramic.
